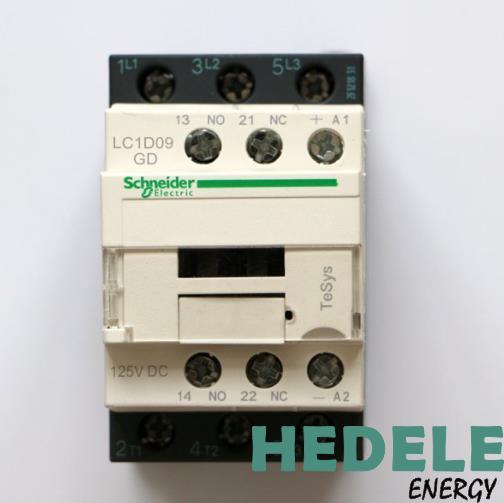

SCHNEIDER LC1D09GD Contactor 125vdc
NQ
Brand: Schneider Electric
Product Type: Power contactor, AC switching
Family: TeSys
Series: TeSys D
Manufacturer Part No.: LC1D09GD
Description: Schneider Electric TeSys D contactor, 3p(3 NO), AC-3, <= 440 V 9A, 125 V DC coil
Rated Control Supply voltage Us @ DC: 125V
Voltage Type for Actuating: DC
Rated Operation Current Ie @ AC-1, 400 V: 25A
Rated Operation Current Ie @ AC-3, 400 V: 9A
Rated Operation Power @ AC-3, 400 V: 4kW
Rated Operation Power Ie @ AC-4, 400 V: 2.2kW
Modular Version: No
Number of Normally Open Auxiliary Contacts: 1
Number of Normally Closed Auxiliary Contacts: 1
Type of Electrical Connection: Screw connection
Number of Normally Open Main Contacts: 3
GTIN: 3389110353198
