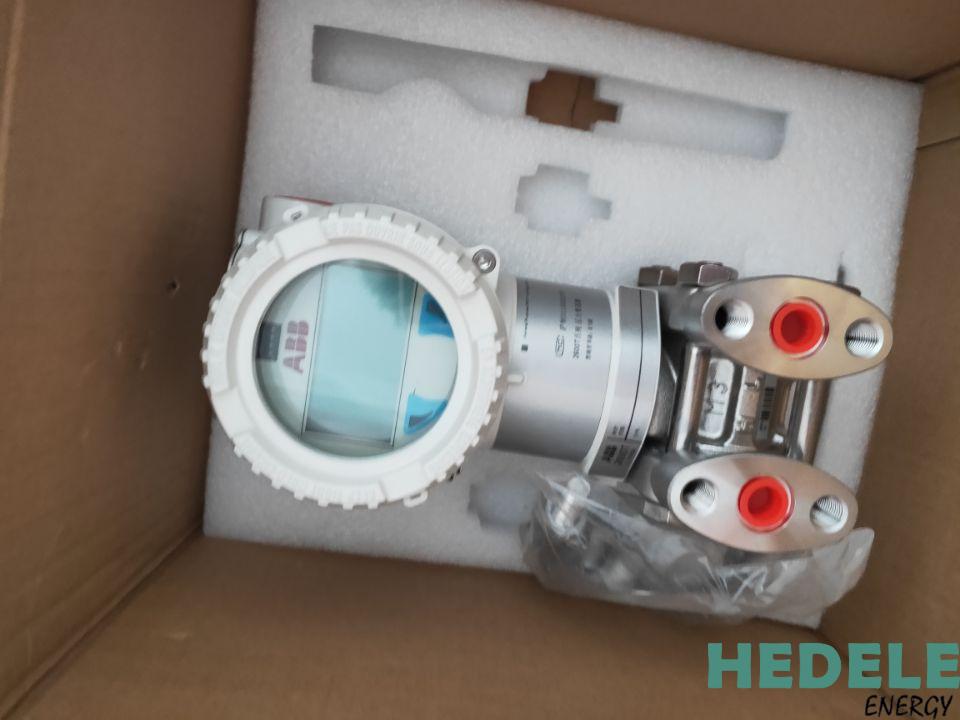

DIFFERENTIAL PRESSURE TRANSMITTER
P/N: 264DS.M.S.M.G.2. A.1.E.1.L.1
INPUT RANGE: 0.06 TO 6BAR
SUPPLY RATING: 10.5 TO 42VDC
OUTPUT RATING: 4 TO 20Ma
WORKING PRESSU RE: 21MPa
SIZE/CONNECTION: 1/4IN-18 FNPT
CONNECTION MATERIAL: CuNi ALLOY
ELECTRICAL CONNECTION: 1/2IN-14 NPT
COMMUNICATION PROTO COL: DIGITAL HART
TEMPERATURE RATING: -40 TO 85DEG C
MATERIAL: Al ALLOY
ENCLOSURE: NEMA 4X, IP67
ACCURACY: 0.075%
DIAPHRAGM MATERIAL: Ni-Cu ALLOY
PRESSURE RATING: 1 TO 2.5BAR
SENSOR FILL FLUID: SI LICONE OIL,
SERIES: 2600 T
Make: ABB
Delivery date：4 weeks
