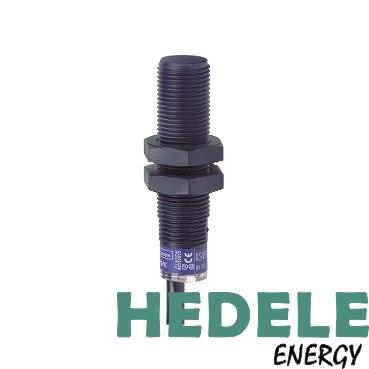

XS4P12PA370
delivery time:4-6weeks
Range of Product | Telemecanique Inductive proximity sensors XS |
---|---|
series name | General purpose |
Sensor Type | Inductive proximity sensor |
sensor name | XS4 |
sensor design | Cylindrical M12 |
size | 52 mm |
body type | Fixed |
detector flush mounting acceptance | Non flush mountable |
Material | Plastic |
type of output signal | Discrete |
Wiring Technique | 3-wire |
[Sn] nominal sensing distance | 0.16 in (4 mm) |
discrete output function | 1 NO |
output circuit type | DC |
discrete output type | PNP |
electrical connection | Cable |
cable length | 6.56 ft (2 m) |
[Us] rated supply voltage | 12...48 V DC reverse polarity protection |
switching capacity in mA | <= 200 mA DC overload and short-circuit protection |
IP degree of protection | IP68 double insulation conforming to IEC 60529 |
