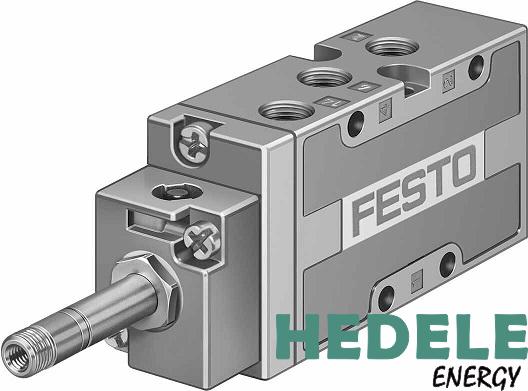

MFH-5-1/8-B
delivery time:2-3 weeks
Valve function
5/2-way, monostable
Type of actuation
Electric
Construction width
26 mm
Standard nominal flow rate
750 l/min
pneumatic working port
G1/8
Operating pressure
0.2 MPa ... 1 MPa
Operating pressure
2 bar ... 10 bar
Design
Poppet seat
Type of reset
Mechanical spring
Nominal size
5 mm
Sealing principle
Soft
Mounting position
optional
Manual override
Non-detenting
Type of piloting
Pilot actuated
Pilot air supply
Internal
Flow direction
Non-reversible
Symbol
00991035
lap
Underlap
b value
0.34
C value
3 l/sbar
Max. switching frequency
3 Hz
Switching time off
30 ms
Switching time on
10 ms
Max. positive test pulse with 0 signal
2,200 µs
Max. negative test pulse with 1 signal
3,700 µs
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC
1 - Low corrosion stress
Storage temperature
-40 °C ... 60 °C
Media temperature
-10 °C ... 60 °C
Ambient temperature
-5 °C ... 40 °C
Product weight
220 g
Electrical connection
Via F coil, to be ordered separately
Type of mounting
On PR rail
With through-hole
Either:
Pilot exhaust port 84
M5
Pneumatic connection, port 1
G1/8
Pneumatic connection, port 2
G1/8
Pneumatic connection, port 3
G1/8
Pneumatic connection, port 4
G1/8
Pneumatic connection, port 5
G1/8
Note on materials
RoHS-compliant
Material seals
NBR
TPE-U(PU)
Material housing
Die-cast aluminium
