ZLL

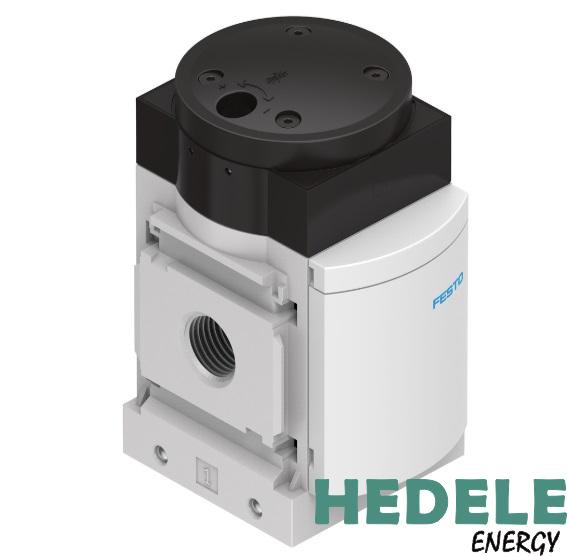

MS6-DL-1/2
delivery time:2-3weeks
-
Exhaust air functionWith flow control option
-
Actuation typePneumatic
-
Mounting positionAny
-
Manual overrideNone
-
Structural designPiston seat
-
Reset methodMechanical spring
-
Type of controlDirect
-
Pilot air supply portExternal
-
Flow directionNon-reversible
-
Symbol00991513
-
Valve function2/2
-
Operating pressure4 bar ... 18 bar
-
b-value0.39
-
C value28.97 l/sbar
-
Standard nominal flow rate6450 l/min
-
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
Inert gas
-
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
-
Corrosion resistance class (CRC)2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
For use in the food industrySee supplementary material information
-
Temperature of medium-10 °C ... 60 °C
-
Ambient temperature-10 °C ... 60 °C
-
Product weight650 g
-
Type of mountingLine installation
With accessories
Optionally:
-
Pneumatic connection 1G1/2
-
Pneumatic connection 2G1/2
-
Note on materialsRoHS-compliant
-
Seals materialNBR
-
Housing materialDie-cast aluminum
