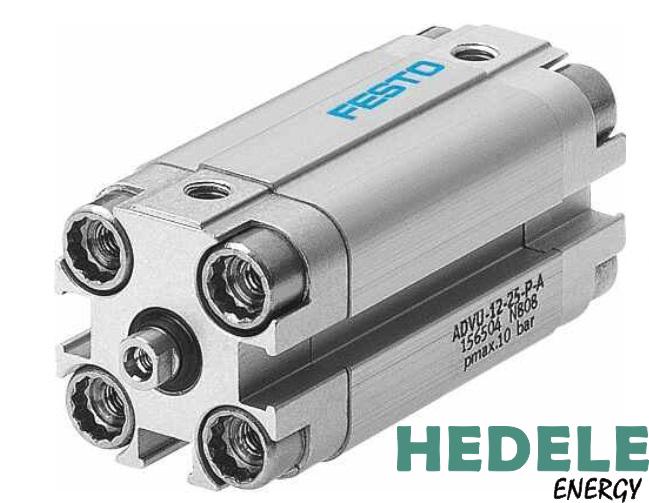

ADVU-16-40-A-P-A
delivery time:3-4weeks
-
Stroke40 mm
-
Piston diameter16 mm
-
CushioningElastic cushioning rings/pads at both ends
-
Mounting positionAny
-
Mode of operationDouble-acting
-
Piston rod endInternal thread
-
Structural designPiston
Piston rod
-
Position sensingFor proximity sensor
-
Symbol00991217
-
VariantsPiston rod at one end
-
Operating pressure0.12 MPa ... 1 MPa
-
Operating pressure1.2 bar ... 10 bar
-
Operating pressure17.4 psi ... 145 psi
-
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
-
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
-
Corrosion resistance class (CRC)2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Ambient temperature-20 °C ... 80 °C
-
Impact energy in the end positions0.1 J
-
Theoretical force at 6 bar, retracting90 N
-
Theoretical force at 6 bar, advancing121 N
-
Moving mass at 0 mm stroke12 g
-
Additional moving mass per 10 mm stroke4 g
-
Basic weight with 0 mm stroke89 g
-
Additional weight per 10 mm stroke15 g
-
Type of mountingWith through-hole
With accessories
Optionally:
-
Pneumatic connectionM5
-
Flange screws materialHigh-alloy stainless steel
-
Cover materialWrought aluminum alloy
-
Material of dynamic sealsNBR
TPE-U(PU)
-
Piston rod materialHigh-alloy stainless steel
-
Material of cylinder barrelWrought aluminum alloy
