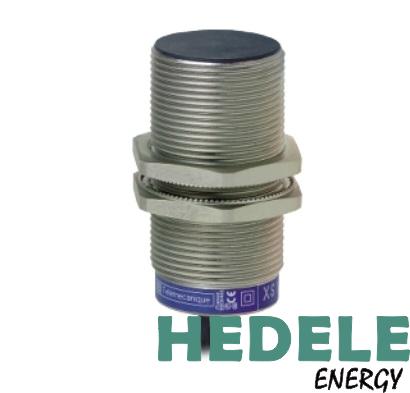

XS1M30MA250
delivery time:2 months
range of product
Telemecanique Inductive proximity sensors XS
series name
General purpose
sensor type
Inductive proximity sensor
wiring configuration
2-wire
output circuit type
AC/DC
protection type
Short-circuit protection multi voltage
device application
2-wire DC short-circuit protection
sensor name
XS1
sensor design
Cylindrical M30
size
60 mm
body type
Fixed
detector flush mounting acceptance
Flush mountable
material
Metal
type of output signal
Discrete
wiring technique
2-wire
[Sn] nominal sensing distance
10 mm
discrete output function
1 NO
electrical connection
Cable
Cable length
2 m
[Us] rated supply voltage
24...210 V DC
24...240 V AC 50/60 Hz
switching capacity in mA
5...300 mA AC with overload and short-circuit protection
5...200 mA DC with overload and short-circuit protection
IP degree of protection
IP68 double insulation conforming to IEC 60529
thread type
M30 x 1.5
detection face
Frontal
front material
PPS
enclosure material
Nickel plated brass
operating zone
0…8 mm
differential travel
1...15% of Sr
cable composition
2 x 0.34 mm²
wire insulation material
PvR
status LED
Output state: 1 LED (yellow)
Supply on: 1 LED (green)
supply voltage limits
20…264 V AC/DC
maximum residual current
1.5 mA open state
switching frequency
<= 2000 Hz DC
<= 25 Hz AC
maximum voltage drop
<5.5 V (closed state)
maximum delay first up
70 ms
maximum delay response
2 ms
maximum delay recovery
5 ms
Marking
CE
threaded length
51 mm
length
60 mm
