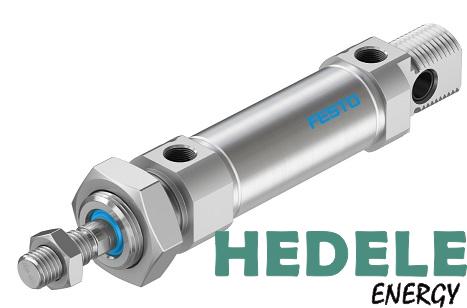

DSNU-25-25-PPV-A
delivery time:2-3weeks
-
Stroke25 mm
-
Piston diameter25 mm
-
Piston rod threadM10x1.25
-
CushioningPneumatic cushioning, adjustable at both ends
-
Mounting positionoptional
-
Conforms to standardCETOP RP 52 P
ISO 6432
-
Piston-rod endMale thread
-
DesignPiston
Piston rod
Cylinder barrel
-
Position detectionVia proximity switch
-
Symbol00991235
-
VariantsPiston rod at one end
-
Operating pressure0.1 MPa ... 1 MPa
-
Operating pressure1 bar ... 10 bar
-
Mode of operationDouble-acting
-
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
-
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
-
Corrosion resistance class CRC2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Cleanroom classClass 6 according to ISO 14644-1
-
Ambient temperature-20 °C ... 80 °C
-
Impact energy in end positions0.3 J
-
Cushioning length17 mm
-
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247.4 N
-
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke294.5 N
-
Moving mass for 0 mm stroke71 g
-
Additional moving mass per 10 mm stroke6 g
-
Basic weight for 0 mm stroke238 g
-
Additional weight per 10 mm stroke11 g
-
Type of mountingWith accessories
-
Pneumatic connectionG1/8
-
Note on materialsRoHS-compliant
-
Material coverWrought aluminium alloy
Colourless anodised
-
Material sealsNBR
TPE-U(PU)
-
Material piston rodHigh-alloy stainless steel
-
Material cylinder barrelHigh-alloy stainless steel
