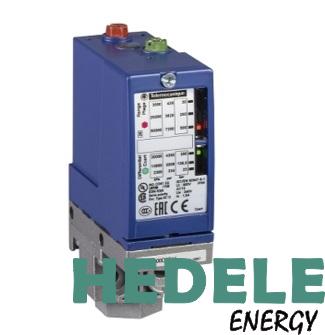

XMLB010A2S12
delivery time:7-9weeks
range of product
Telemecanique Pressure sensors XM
product or component type
Electromechanical pressure sensor
pressure sensor type
Electromechanical pressure sensor
device short name
XMLB
pressure rating
145.04 psi (10 bar)
controlled fluid
Air 32…158 °F (0…70 °C))
Fresh water 32…158 °F (0…70 °C))
Hydraulic oil 32…158 °F (0…70 °C))
fluid connection type
G 1/4 (female) ISO 228
electrical connection
Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm²
1 connector ISO M20
AWG gauge
AWG 20...AWG 14
cable entry
Cable gland 0.28…0.51 in (7…13 mm)
contacts type and composition
1 C/O
product specific application
-
pressure switch type of operation
Regulation between 2 thresholds
electrical circuit type
Control circuit
scale type
Adjustable differential
local display
With
adjustable range of switching point on rising pressure
10.15…145.04 psi (0.7…10 bar)
adjustable range of switching point on falling pressure
1.89…132.71 psi (0.13…9.15 bar)
possible differential maximum at high setting
108.78 psi (7.5 bar)
maximum permissible accidental pressure
326.33 psi (22.5 bar)
destruction pressure
652.67 psi (45 bar)
pressure actuator
Diaphragm
materials in contact with fluid
Zinc alloy
FPM, FKM
enclosure material
Zinc alloy
[In] rated current
3 A, B300, AC-15 (Ue = 120 V)EN/IEC 60947-5-1
1.5 A, B300, AC-15 (Ue = 240 V)EN/IEC 60947-5-1
0.1 A, R300, DC-13 (Ue = 250 V)EN/IEC 60947-5-1
possible differential minimum at low setting
8.27 psi (0.57 bar) +/- 0.05 bar)
possible differential minimum at high setting
12.33 psi (0.85 bar) - 0.1 bar, + 0.15 bar)
maximum permissible pressure - per cycle
181.30 psi (12.5 bar)
terminal block type
4 terminals
maximum operating rate
120 cyc/mn
repeat accuracy
2 %
[Ui] rated insulation voltage
300 V UL 508
500 V EN/IEC 60947-1
300 V CSA C22.2 No 14
[Uimp] rated impulse withstand voltage
6 kV EN/IEC 60947-1
auxiliary contacts operation
Snap action
contacts material
Silver contacts
maximum resistance across terminals
25 mOhm IEC 255-7 category 3
25 mOhm NF C 93-050 method A
short-circuit protection
10 A cartridge fuse gG (gl)
mechanical durability
5000000 cycles
setting
External
Height
4.45 in (113 mm)
Depth
2.95 in (75 mm)
width
1.38 in (35 mm)
