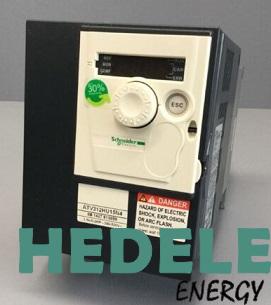

ATV312HU15N4
delivery time:in stock
Range of Product
Altivar 312
Product or Component Type
Variable speed drive
product destination
Asynchronous motors
Product Specific Application
Simple machine
assembly style
With heat sink
component name
ATV312
motor power kW
1.5 kW
Maximum Horse Power Rating
2 hp
[Us] rated supply voltage
380...500 V - 15...10 %
supply frequency
50...60 Hz - 5...5 %
Phase
3 phase
line current
6.4 A 380 V, Isc = 5 kA
4.8 A 500 V
EMC filter
Integrated
apparent power
4.2 kVA
maximum transient current
6.2 A 60 s
power dissipation in W
61 W at nominal load
speed range
1…50
asynchronous motor control profile
Factory set : constant torque
Sensorless flux vector control with PWM type motor control signal
electrical connection
Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 terminal 0.00 in² (2.5 mm²) AWG 14
L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- terminal 0.01 in² (5 mm²) AWG 10
supply
Internal supply for logic inputs 19...30 V 100 mA overload and short-circuit protection
Internal supply for reference potentiometer (2.2 to 10 kOhm) 10...10.8 V 10 mA overload and short-circuit protection
Communication Port Protocol
Modbus
CANopen
IP degree of protection
IP20 on upper part without cover plate
IP21 on connection terminals
IP31 on upper part
IP41 on upper part
option card
Communication card CANopen daisy chain
Communication card DeviceNet
Communication card Fipio
Communication card Modbus TCP
Communication card Profibus DP
supply voltage limits
323…550 V
prospective line Isc
5 kA
continuous output current
4.1 A 4 kHz
Output frequency
0…500 Hz
nominal switching frequency
4 kHz
switching frequency
2...16 kHz adjustable
transient overtorque
170…200 % of nominal motor torque
braking torque
150 % 60 s with braking resistor
100 % with braking resistor continuously
150 % without braking resistor
regulation loop
Frequency PI regulator
motor slip compensation
Suppressable
Adjustable
Automatic whatever the load
output voltage
<= power supply voltage
tightening torque
Al1, Al2, Al3, AOV, AOC, R1A, R1B, R1C, R2A, R2B, LI1...LI6 5.31 lbf.in (0.6 N.m)
L1, L2, L3, U, V, W, PA, PB, PA/+, PC/- 10.62 lbf.in (1.2 N.m)
insulation
Electrical between power and control
analogue input number
3
analogue input type
AI1 configurable voltage 0...10 V 30 V max 30000 Ohm
AI2 configurable voltage +/- 10 V 30 V max 30000 Ohm
AI3 configurable current 0...20 mA 250 Ohm
sampling duration
AI1, AI2, AI3 8 ms analog
LI1...LI6 4 ms discrete
response time
AOV, AOC 8 ms analog
R1A, R1B, R1C, R2A, R2B 8 ms discrete
linearity error
+/- 0.2 % output
analogue output number
1
analogue output type
AOC configurable current 0...20 mA 800 Ohm 8 bits
AOV configurable voltage 0...10 V 470 Ohm 8 bits
discrete input logic
Logic input not wired LI1...LI4), < 13 V
Negative logic (source) LI1...LI6), > 19 V
Positive logic (source) LI1...LI6), < 5 V, > 11 V
discrete output number
2
discrete output type
Configurable relay logic R1A, R1B, R1C) 1 NO + 1 NC - 100000 cycles
Configurable relay logic R2A, R2B) NC - 100000 cycles
minimum switching current
R1-R2 10 mA 5 V DC
maximum switching current
R1-R2 2 A 250 V AC inductive, cos phi = 0.4 7 ms
R1-R2 2 A 30 V DC inductive, cos phi = 0.4 7 ms
R1-R2 5 A 250 V AC resistive, cos phi = 1 0 ms
R1-R2 5 A 30 V DC resistive, cos phi = 1 0 ms
discrete input number
6
discrete input type
LI1...LI6) programmable 24 V, 0…100 mA PLC 3500 Ohm
acceleration and deceleration ramps
S, U or customized
Linear adjustable separately from 0.1 to 999.9 s
braking to standstill
By DC injection
protection type
Input phase breaks drive
Line supply overvoltage and undervoltage safety circuits drive
Line supply phase loss safety function, for three phases supply drive
Motor phase breaks drive
Overcurrent between output phases and earth (on power up only) drive
Overheating protection drive
Short-circuit between motor phases drive
Thermal protection motor
insulation resistance
>= 500 mOhm 500 V DC for 1 minute
local signalling
For drive voltage 1 LED (red)
for CANopen bus status four 7-segment display units
time constant
5 ms for reference change
frequency resolution
Analog input 0.1...100 Hz
Display unit 0.1 Hz
connector type
1 RJ45 Modbus/CANopen
physical interface
RS485 multidrop serial link
transmission frame
RTU
Transmission Rate
10, 20, 50, 125, 250, 500 kbps or 1 Mbps CANopen
4800, 9600 or 19200 bps Modbus
number of addresses
1…127 CANopen
1…247 Modbus
number of drive
127 CANopen
31 Modbus
Marking
CE
operating position
Vertical +/- 10 degree
outer dimension
382 x 239 x 170 mm
143 x 105 x 150 mm
184 x 149 x 157 mm
Height
5.63 in (143 mm)
Width
4.21 in (107 mm)
Depth
5.98 in (152 mm)
Net Weight
3.97 lb(US) (1.8 kg)
dielectric strength
2410 V DC between earth and power terminals
3400 V AC between control and power terminals
electromagnetic compatibility
1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5
Electrical fast transient/burst immunity test level 4 IEC 61000-4-4
Electrostatic discharge immunity test level 3 IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3
Standards
IEC 61800-3
IEC 61800-5-1
Product Certifications
UL
DNV
CSA
C-tick
NOM
GOST
pollution degree
2
protective treatment
TC
vibration resistance
1 gn 13…150 Hz)EN/IEC 60068-2-6
1.5 mm 3…13 Hz)EN/IEC 60068-2-6
shock resistance
15 gn 11 ms EN/IEC 60068-2-27
relative humidity
5…95 % without condensation IEC 60068-2-3
5…95 % without dripping water IEC 60068-2-3
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
ambient air temperature for operation
14…122 °F (-10…50 °C) without derating with protective cover on top of the drive)
14…140 °F (-10…60 °C) with derating factor without protective cover on top of the drive)
operating altitude
<= 3280.84 ft (1000 m) without derating
3280.84...9842.52 ft (1000...3000 m) with current derating 1 % per 100 m
Category
22152-ATV320/ATV312/ATV32 (.25 THRU 7.5HP)
Discount Schedule
CP4B
GTIN
3606480077586
Returnability
No
Country of origin
ID
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
6.69 in (16.996 cm)
Package 1 Width
6.76 in (17.179 cm)
Package 1 Length
8.12 in (20.62 cm)
Package 1 Weight
4.35 lb(US) (1.972 kg)
