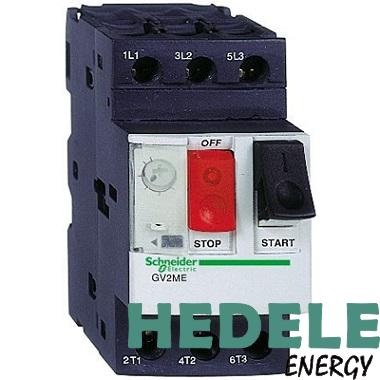

Model:GV2MEO8
Delivery time:in stock
range
TeSys Deca
TeSys Deca
product name
TeSys GV2
TeSys Deca
product or component type
Motor circuit breaker
device short name
GV2ME
device application
Motor protection
poles description
3P
network type
AC
control type
Push-button
motor power kW
1.1 kW at 400/415 V AC 50/60 Hz
1.5 kW at 400/415 V AC 50/60 Hz
1.5 kW at 500 V AC 50/60 Hz
3 kW at 690 V AC 50/60 Hz
2.2 kW at 500 V AC 50/60 Hz
2.2 kW at 690 V AC 50/60 Hz
[In] rated current
4 A
trip unit technology
Thermal-magnetic
magnetic tripping current
51 A
suitability for isolation
Yes conforming to IEC 60947-1 § 7-1-6
phase failure sensitivity
Yes conforming to IEC 60947-4-1
utilisation category
AC-3 conforming to IEC 60947-4-1
Category A conforming to IEC 60947-2
[Ue] rated operational voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal current
4 A conforming to IEC 60947-4-1
network frequency
50/60 Hz conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-2
power dissipation per pole
2.5 W
mechanical durability
100000 cycles
electrical durability
100000 cycles for AC-3 at 415 V
at 415 V
rated duty
Continuous conforming to IEC 60947-4-1
breaking capacity
100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity
100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
Height
89 mm
width
45 mm
Depth
78.5 mm
Net weight
0.26 kg
Standards
EN/IEC 60947-2
EN/IEC 60947-4-1
product certifications
CCC
UL
CSA
EAC
ATEX
BV
LROS (Lloyds register of shipping)
UKCA
DNV-GL
RINA
climatic withstand
Conforming to IACS E10
IP degree of protection
IP20 conforming to IEC 60529
ambient air temperature for operation
-20…60 °C
Ambient air temperature for storage
-40…80 °C
fire resistance
960 °C conforming to IEC 60695-2-11
operating altitude
2000 m
