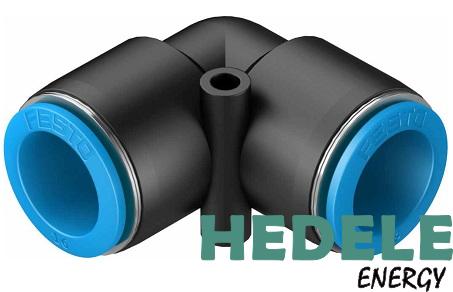

ZLL
QSL-16
delivery time:in stock
-
SizeStandard
-
Nominal size13 mm
-
Mounting positionoptional
-
Size of pack1
-
DesignPush-pull principle
-
Operating pressure complete temperature range-0.95 bar ... 6 bar
-
Temperature-dependent operating pressure-0.95 bar ... 14 bar
-
Maritime classificationSee certificate
-
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Water as per manufacturer's declaration at www.festo.com
-
Note on operating and pilot mediumLubricated operation possible
-
Corrosion resistance class CRC1 - Low corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Ambient temperature-10 °C ... 80 °C
-
Product weight31 g
-
Pneumatic connection, port 1For tubing outer diameter of 16 mm
-
Pneumatic connection, port 2For tubing outside diameter of 16 mm
-
Colour of release ringBlue
-
Note on materialsRoHS-compliant
-
Material housingPBT
-
Material release ringPOM
-
Material tubing sealNBR
-
Material tubing clamp componentHigh-alloy stainless steel
