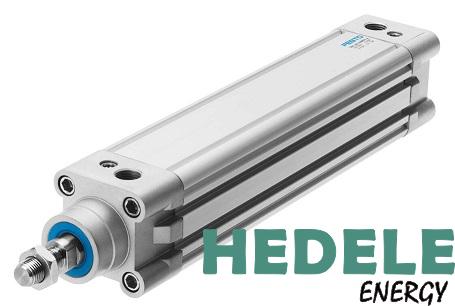

DNC-32-25-PPV-A
delivery time:in stock
-
Stroke25 mm
-
Piston diameter32 mm
-
Piston rod threadM10x1.25
-
CushioningPneumatic cushioning, adjustable at both ends
-
Mounting positionAny
-
Conforms to standardISO 15552
-
Piston rod endExternal thread
-
Structural designPiston
Piston rod
Profile barrel
-
Position sensingFor proximity sensor
-
Symbol00991235
-
VariantsPiston rod at one end
-
Operating pressure0.06 MPa ... 1.2 MPa
-
Operating pressure0.6 bar ... 12 bar
-
Mode of operationDouble-acting
-
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
-
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
-
Corrosion resistance class (CRC)2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Ambient temperature-20 °C ... 80 °C
-
Impact energy in the end positions0.1 J
-
Cushioning length20 mm
-
Theoretical force at 6 bar, retracting415 N
-
Theoretical force at 6 bar, advancing483 N
-
Moving mass at 0 mm stroke162 g
