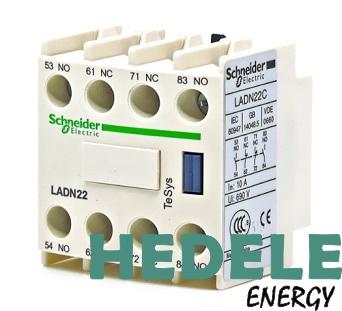

LADN22C
delivery time：in stock
Main information
Product range
TeSys
TeSys Deca
product type
Auxiliary contact module
Scope of application
CR1F
Auxiliary contact operation
Instantaneous motion
Loop contact type
2 NO + 2 NC
Wiring capacity
Bolt fastening 1 cable 1... 2.5 mm ² Cord tape
Bolt fastening 1 cable 1... 2.5 mm ² Flexible cord without
Bolt fastening 2 Cable 1... 2.5 mm ² Cord tape
Bolt fastening 2 Cable 1... 2.5 mm ² Flexible cord without
Bolt fastening 1 cable 1... 2.5 mm ² Hard ribbon
Bolt fastening 1 cable 1... 2.5 mm ² Hard wire without
Bolt fastening 2 Cable 1... 2.5 mm ² Hard ribbon
Bolt fastening 2 Cable 1... 2.5 mm ² Hard wire without
Supplementary information
Installation position
positive
Rated insulation voltage [Ui]
600 V Certificate UL
690 V acc. to IEC 60947-5-1
600 V Certificate CSA
Rated operating voltage [Ue]
690 V AC 25...400 Hz
Agreed heating current [Ith]
10 A<60 ° C on
Rated making capacity [Irms]
140 A on<=690 V AC acc. to IEC 60947-5-1
250 A on<=690 V DC acc. to IEC 60947-5-1
Allow short time rating
100 A at<60 ° C for 1 s
120 A<60 ° C 500 ms on
140 A<60 ° C for 100 ms on
Protection type
GG fuse 10 A
Fuses for use with relays
10 A gG according to IEC 60947-5-1
Mechanical life
30 Mcycles
Minimum switching current [Imin]
5 mA
Minimum switching voltage
17 V
No overlapping time
No overlap between NC and NO contacts after 1.5 ms power loss
No overlap between NC and NO contacts after 1.5 ms power on
Overlapping time
1.5 ms
insulation resistance
> 10 MΩ
Net weight
0.05 kg
