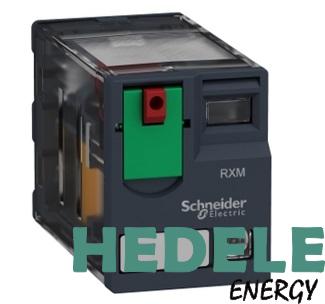

RXM4GB2P7
delivery time:in stock
Range of product
Harmony Electromechanical Relays
Series name
Miniature
Product or component type
Plug-in relay
Device short name
RXM
Contacts type and composition
4 C/O
[Uc] control circuit voltage
230 V AC 50/60 Hz
[Ithe] conventional enclosed thermal current
3 A at -40…55 °C
Status LED
With
Control type
Lockable test button
Utilisation coefficient
20 %
Shape of pin
Flat
[Ui] rated insulation voltage
250 V conforming to IEC
300 V conforming to CSA
300 V conforming to UL
[Uimp] rated impulse withstand voltage
2.5 kV during 1.2/50 µs
Contacts material
Gold plated bifurcated silver
[Ie] rated operational current
2 A at 28 V (DC) NO conforming to IEC
2 A at 250 V (AC) NO conforming to IEC
1 A at 28 V (DC) NC conforming to IEC
1 A at 250 V (AC) NC conforming to IEC
3 A at 28 V (DC) conforming to UL
3 A at 277 V (AC) conforming to UL
maximum switching voltage
250 V conforming to IEC
resistive rated load
3 A at 250 V AC
3 A at 28 V DC
maximum switching capacity
750 VA/84 W
minimum switching capacity
15 mW at 3 mA, 5 V
operating rate
<= 1200 cycles/hour under load
<= 18000 cycles/hour no-load
Mechanical durability
10000000 cycles
electrical durability
100000 cycles for resistive load depending on mounting position and working environment
average coil consumption in VA
1.2 at 60 Hz
average consumption
1.2 VA at 60 Hz
drop-out voltage threshold
>= 0.15 Uc
operate time
20 ms
release time
20 ms
average coil resistance
15000 Ohm at 20 °C +/- 15 %
rated operational voltage limits
184...253 V AC
Protection category
RT I
test levels
Level A group mounting
Operating position
Any position
