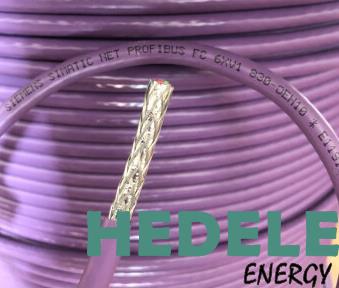

SIEMENS PROFIBUS FC Standard Cable GP, 22AWG6XV1830-0EH10
NQ
6xv1830-0eh10 communication cable Product features:
1. 6xv1830-0eh10 communication cable is suitable for PROFIBUS-DP, also for PROFIBUS-FMS and FIP. 2:
( Category A cable, PROFIBUS-DP ):
93.75 kbit/s = 1200 m
187.5 kbit/s = 1000 m .
500 kbit/s = 400 m
1.5 Mbits = 200 m
6xv1830-0eh10 communication cable Technical approvals:
RoHS certified, CE certified
DIN 19245 and EN 50170, e.g. SIENENS SIMATIC NET, also suitable for FIP (Factory Instrumentation Protocol)
6xv1 830-0eh10 communication cable application areas:
Wide range of applications, e.g. in industrial automation, EMC shielding, dry or humid rooms, UV resistant, suitable for FIP - Factory Test Equipment Protocol, cables for PROFIBUS -DP and PROFIBUS-FMS and FIP
6xv1830-0eh10 communication cable Product structure:
Conductor: 1x2x0.64mm oxygen-free copper conductor
Insulation: Communication cable with physical foam double co-extruded double insulation
Core colour: green + red
Inner sheath: colour
Shield: Aluminium-plastic composite film-wrapped shield + tinned copper mesh braid double shield, excellent resistance to external signal interference Outer sheath: flexible flame retardant environmentally friendly hybrid material 3DRX 22X 02R
Colour: Purple (RAL 4001)
Characteristic impedance: 150ohm
Conductor resistance: 57.502/km
Operating temperature: between -30°C and 90°C
6xv1830-0eh10 communication cable technical parameters: mutual inductance capacitance: approx. 28.5nF/km
Voltage: 300/300V
Bending radius: 80mm
Test voltage
Core/core line: 1500V
Core/screen: 1500V
Temperature range: -30°C to 90°C
Characteristic impedance
(3-20 MHz) : 150 to 15 Ohm
