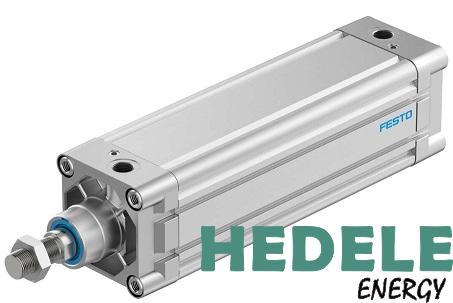

DNC-80-PPV-A
delivery time:3-4 weeks
-
Stroke3 mm ... 2000 mm
-
Piston diameter80 mm
-
Piston rod threadM20x1.5
-
CushioningPneumatic cushioning, adjustable at both ends
-
Mounting positionAny
-
Conforms to standardISO 15552
-
Piston rod endExternal thread
-
Structural designPiston
Piston rod
Profile barrel
-
Position sensingFor proximity sensor
-
Symbol00991235
-
VariantsPiston rod at one end
-
Operating pressure0.06 MPa ... 1.2 MPa
-
Operating pressure0.6 bar ... 12 bar
-
Mode of operationDouble-acting
-
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
-
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
-
Corrosion resistance class (CRC)2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Ambient temperature-20 °C ... 80 °C
-
Impact energy in the end positions0.9 J
-
Cushioning length32 mm
-
Theoretical force at 6 bar, retracting2721 N
-
Theoretical force at 6 bar, advancing3016 N
-
Moving mass at 0 mm stroke1131 g
-
Additional moving mass per 10 mm stroke38 g
-
Basic weight with 0 mm stroke2790 g
-
Additional weight per 10 mm stroke106 g
-
Type of mountingWith internal thread
With accessories
-
Pneumatic connectionG3/8
-
Note on materialsRoHS-compliant
-
Cover materialDie-cast aluminum
Coated
-
Seals materialTPE-U(PU)
-
Piston rod materialHigh-alloy steel
-
Material of cylinder barrelWrought aluminum alloy
Smooth anodized
