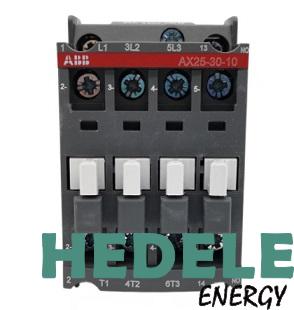

AX25-30-10-80

Rate:

0.0000/5

( 0 reviews )

Item NO.: V008813 MOQ: 0

Weight: 0kgs

Package Size:

Price：

$13.50

Qty：

$13.50

Shipping：

Calculate Shipping Cost

AX25-30-10-80

delivery time：in stock

AX25-30-10-80

General Information

Extended Product Type:

AX25-30-10-80

Product ID:

1SBL931074R8010

EAN:

3471522397805

Catalog Description:

AX25-30-10-80 220-230V50Hz/230-240V60Hz Contactor

Long Description:

AX09...AX25 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC. These contactors are of the block type design with: – 3 main poles and 1 built-in auxiliary contact – control circuit: AC operated – add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85364900

Popular Downloads

Instructions and Manuals:

9AKK107492A7057

CAD Dimensional Drawing:

2CDC001079B0201

Dimensions

Product Net Width:

44 mm

Product Net Depth / Length:

74 mm

Product Net Height:

76.3 mm

Product Net Weight:

0.326 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

0

Rated Operational Voltage:

Auxiliary Circuit 690 V
Main Circuit 690 V

Rated Frequency (f):

Auxiliary Circuit 50 / 60 Hz
Main Circuit 50 / 60 Hz

Conventional Free-air Thermal Current (Ith):

acc. to IEC 60947-4-1, Open Contactors q = 40 °C 32 A
acc. to IEC 60947-5-1, q = 40 °C 16 A

Rated Operational Current AC-1 (Ie):

(220 / 240 V) 55 °C 27 A
(690 V) 40 °C 32 A
(690 V) 70 °C 23 A

Rated Operational Current AC-3 (Ie):

(415 V) 55 °C 25 A
(440 V) 55 °C 16 A
(500 V) 55 °C 14 A
(690 V) 55 °C 10 A
(380 / 400 V) 55 °C 25 A
(220 / 230 / 240 V) 55 °C 25 A

Rated Operational Power AC-3 (Pe):

(415 V) 11 kW
(440 V) 9 kW
(500 V) 9 kW
(690 V) 9 kW
(380 / 400 V) 11 kW
(220 / 230 / 240 V) 6.5 kW

Rated Operational Current AC-15 (Ie):

(500 V) NC 2
(500 V) 2 A
(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(380 / 400 V) 3 A
(400 / 440 V) 2 A

Rated Short-time Withstand Current Low Voltage (Icw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 200 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 32 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 85 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 105 A
for 0.1 s 140 A
for 1 s 100 A

Maximum Breaking Capacity:

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A

Maximum Electrical Switching Frequency:

(AC-1) 600 cycles per hour
(AC-15) 1200 cycles per hour
(AC-3) 1200 cycles per hour
(DC-13) 900 cycles per hour

Rated Operational Current DC-13 (Ie):

(24 V) 6 A / 144 W
(110 V) 1.1 A / 121 W
(125 V) 1.1 A / 138 W
(220 V) 0.55 A / 121 W
(250 V) 0.55 A / 138 W
(400 V) 2.8 A / 134 W
(500 V) 2 A / 144 W

Rated Insulation Voltage (Ui):

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V

Rated Impulse Withstand Voltage (Uimp):

Auxiliary Circuit 6 kV

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Rated Control Circuit Voltage (Uc):

50 Hz 220 ... 230 V
60 Hz 230 ... 240 V

Operate Time:

Between Coil De-energization and NC Contact Closing 9 ... 16 ms
Between Coil De-energization and NO Contact Opening 4 ... 11 ms
Between Coil Energization and NC Contact Opening 7 ... 21 ms
Between Coil Energization and NO Contact Closing 10 ... 26 ms

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
IP20

Terminal Type:

Screw Terminals

Technical UL/CSA

General Use Rating UL/CSA:

(600 V AC) 30 A

Horsepower Rating UL/CSA:

(120 V AC) Single Phase 2 hp
(200 ... 208 V AC) Three Phase 7.5 hp
(220 ... 240 V AC) Three Phase 7.5 hp
(240 V AC) Single Phase 3 hp
(440 ... 480 V AC) Three Phase 15 hp
(550 ... 600 V AC) Three Phase 15 hp

Tightening Torque UL/CSA:

Auxiliary Circuit 9 in·lb
Control Circuit 9 in·lb
Main Circuit 11 in·lb

Environmental

Ambient Air Temperature:

Close to Contactor Fitted with Thermal O/L Relay -25 ... 55 °C
Close to Contactor without Thermal O/L Relay -40 ... 70 °C
Close to Contactor for Storage -60 ... +80 °C
Near Contactor for Operation in Free Air -40 ... 70 °C

Climatic Withstand:

acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II

Maximum Operating Altitude Permissible:

3000 m

RoHS Status:

Following EU Directive 2002/95/EC August 18, 2005 and amendment

Certificates and Declarations (Document Number)

CB Certificate:

9AKK107492A7072

CCC Certificate:

9AKK107492A7089

CCS Certificate:

9AKK107492A7096

CQC Certificate:

CQC2013010304646608

Declaration of Conformity - CCC:

2020980304001066

Declaration of Conformity - CE:

1SBD250011U1000

Instructions and Manuals:

9AKK107492A7057

RoHS Information:

1SBD251301E1000

Container Information

Package Level 1 Units:

1 piece

Package Level 1 Width:

48 mm

Package Level 1 Depth / Length:

78 mm

Package Level 1 Height:

79 mm

Package Level 1 Gross Weight:

0.34 kg
