AX95-30-11-80

Rate:

0.0000/5

( 0 reviews )

Item NO.: V008816 MOQ: 0

Weight: 0kgs

Package Size:

Price：

$65.80

Qty：

$65.80

Shipping：

Calculate Shipping Cost

AX95-30-11-80

delivery time：in stock

AX95-30-11-80

General Information

Extended Product Type:

AX95-30-11-80

Product ID:

1SFL431074R8011

EAN:

7320500500040

Catalog Description:

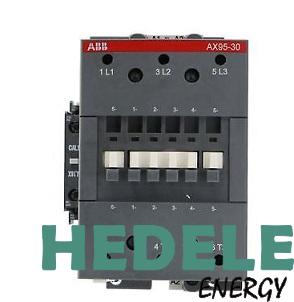

AX95-30-11-80 Contactor

Long Description:

AX95-30-11-80 Contactor

Categories

Products » Low Voltage Products and Systems » Control Products » Contactors » Block Contactors

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85364900

Popular Downloads

Instructions and Manuals:

9AKK107492A7060

CAD Dimensional Drawing:

2CDC001079B0201

Dimensions

Product Net Width:

102 mm

Product Net Depth / Length:

123.5 mm

Product Net Height:

148 mm

Product Net Weight:

1.9 kg

Technical

Number of Main Contacts NO:

3

Number of Main Contacts NC:

0

Number of Auxiliary Contacts NO:

1

Number of Auxiliary Contacts NC:

1

Rated Operational Voltage:

Main Circuit 1000 V

Rated Frequency (f):

Main Circuit 60 Hz

Conventional Free-air Thermal Current (Ith):

acc. to IEC 60947-4-1, Open Contactors q = 40 °C 145 A

Rated Operational Current AC-1 (Ie):

(690 V) 40 °C 145 A
(690 V) 55 °C 135 A
(690 V) 60 °C 135 A
(690 V) 70 °C 115 A

Rated Operational Current AC-3 (Ie):

(415 V) 55 °C 96 A
(440 V) 55 °C 93 A
(500 V) 55 °C 80 A
(690 V) 55 °C 65 A
(380 / 400 V) 55 °C 96 A
(220 / 230 / 240 V) 55 °C 96

Rated Operational Power AC-3 (Pe):

(415 V) 55 kW
(440 V) 55 kW
(500 V) 55 kW
(690 V) 55 kW
(380 / 400 V) 45 kW
(220 / 230 / 240 V) 25 kW

Rated Breaking Capacity AC-3:

8 x Ie AC-3

Rated Making Capacity AC-3:

10 x Ie AC-3

Rated Short-time Withstand Current Low Voltage (Icw):

at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 800 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 160 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 350 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1320 A
at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 500 A

Maximum Electrical Switching Frequency:

300 cycles per hour

Rated Insulation Voltage (Ui):

acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V

Rated Impulse Withstand Voltage (Uimp):

8 kV

Mechanical Durability:

10 million

Maximum Mechanical Switching Frequency:

3600 cycles per hour

Coil Operating Limits:

(acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C)

Rated Control Circuit Voltage (Uc):

50 Hz 220 ... 230 V
60 Hz 230 ... 240 V

Degree of Protection:

acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40

Terminal Type:

Cable Clamp

Environmental

Ambient Air Temperature:

Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C
Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C
Close to Contactor for Storage -40 ... +70 °C

Maximum Operating Altitude Permissible:

Without Derating 3000 m

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Certificates and Declarations (Document Number)

CQC Certificate:

CQC2013010304646592

Declaration of Conformity - CCC:

2020980304001063

Declaration of Conformity - CE:

2CMT2015-005443

Instructions and Manuals:

9AKK107492A7060

RoHS Information:

2CMT2015-005443

UL Certificate:

20160916- E36588

Container Information

Package Level 1 Units:

box 1 piece

Package Level 1 Width:

140 mm

Package Level 1 Depth / Length:

170 mm

Package Level 1 Height:

130 mm

Package Level 1 Gross Weight:

2.1 kg
