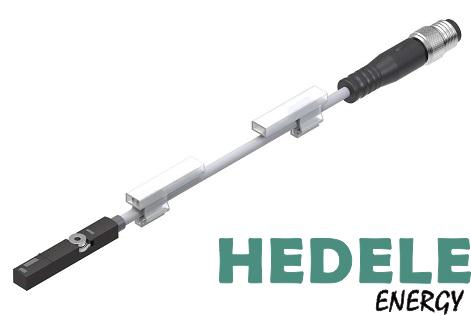

SME-8M-DS-24V-K-0.3
delivery time:in stock
-
Symbol00991619
-
CertificationRCM compliance mark
c UL us - Listed (OL)
-
CE marking (see declaration of conformity)As per EU EMC directive
As per EU RoHS directive
-
UKCA marking (see declaration of conformity)To UK instructions for EMC
To UK RoHS instructions
-
Special featuresOil-resistant
-
Note on materialsRoHS-compliant
-
Measuring principleMagnetic reed
-
Ambient temperature-40 °C ... 70 °C
-
Switching outputContact-based, bipolar
-
Switching element functionN/O contact
-
Max. output current500 mA
-
Max. output current in mounting kits80 mA
-
Min. switching capacity AC10 VA
-
Max. switching capacity DC10 W
-
Max. switching capacity DC in mounting kits2.4 W
-
Max. switching capacity AC in mounting kits2.4 VA
-
Voltage drop1.17 V
-
Short-circuit protectionno
-
Overload protectionNot available
-
Operating voltage range AC5 V ... 30 V
-
DC operating voltage range5 V ... 30 V
-
Reverse polarity protectionno
-
Electrical connection 1, connection typeCable with plug
-
Electrical connection 1, connection technologyM8x1 A-coded as per EN 61076-2-104
-
Electrical connection 1, number of pins/wires3
-
Electrical connection 1, type of mountingScrew-type lock
-
Electrical connection for input 1, connection pattern00991155
-
Connection outlet orientationLongitudinal
-
Connector cable test conditionsFlexural strength: as per Festo standard
Test conditions on request
Energy chain > 5 million cycles, bending radius 75 mm
-
Cable length0.3 m
-
Cable characteristicStandard + cable chain
-
Material of cable sheathTPE-U(PUR)
-
Type of mountingScrewed tightly
Can be inserted in slot from above
-
Product weight8.9 g
-
Housing materialBrass, nickel-plated
PA
TPE-U(PUR)
High-alloy stainless steel
-
Switching status indicationLED yellow
-
Ambient temperature with flexible cable installation-5 °C ... 70 °C
-
Degree of protectionIP65
IP68
-
LABS (PWIS) conformityVDMA24364-B2-L
