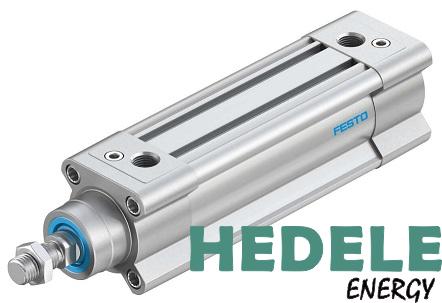

DSBC-40-80-PPVA-N3
delivery time:3-4weeks
-
Stroke80 mm
-
Piston diameter40 mm
-
Piston rod threadM12x1.25
-
CushioningPneumatic cushioning, adjustable at both ends
-
Mounting positionAny
-
Conforms to standardISO 15552
-
Piston rod endExternal thread
-
Structural designPiston
Piston rod
Profile barrel
-
Position sensingFor proximity sensor
-
Symbol00991235
-
VariantsPiston rod at one end
-
Operating pressure0.06 MPa ... 1.2 MPa
-
Operating pressure0.6 bar ... 12 bar
-
Mode of operationDouble-acting
-
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
-
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
-
Corrosion resistance class (CRC)2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Ambient temperature-20 °C ... 80 °C
-
Impact energy in the end positions0.7 J
-
Cushioning length19 mm
-
Theoretical force at 6 bar, retracting633 N
-
Theoretical force at 6 bar, advancing754 N
-
Moving mass at 0 mm stroke205 g
-
Additional moving mass per 10 mm stroke16 g
-
Basic weight with 0 mm stroke740 g
-
Additional weight per 10 mm stroke37 g
-
Type of mountingWith internal thread
With accessories
Optionally:
-
Pneumatic connectionG1/4
-
Note on materialsRoHS-compliant
-
Cover materialDie-cast aluminum, coated
-
Piston seal materialTPE-U(PU)
-
Material of pistonWrought aluminum alloy
-
Piston rod materialHigh-alloy steel
-
Piston rod wiper materialTPE-U(PU)
-
Buffer seal materialTPE-U(PU)
-
Cushion piston materialPOM
-
Material of cylinder barrelWrought aluminum alloy, smooth-anodized
-
Nut materialSteel, galvanized
-
Material of bearingPOM
-
Flange screws materialSteel, galvanized
