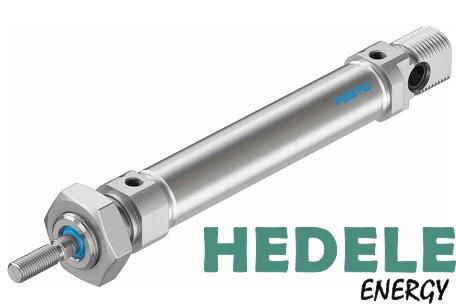

DSNU-16-50-PPV-A
delivery time:3-4weeks
-
Stroke50 mm
-
Piston diameter16 mm
-
Piston rod threadM6
-
CushioningPneumatic cushioning, adjustable at both ends
-
Mounting positionAny
-
Conforms to standardCETOP RP 52 P
ISO 6432
-
Piston rod endExternal thread
-
Structural designPiston
Piston rod
Cylinder barrel
-
Position sensingFor proximity sensor
-
Symbol00991235
-
VariantsPiston rod at one end
-
Operating pressure0.1 MPa ... 1 MPa
-
Operating pressure1 bar ... 10 bar
-
Mode of operationDouble-acting
-
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
-
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
-
Corrosion resistance class (CRC)2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Cleanroom classClass 6 according to ISO 14644-1
-
Ambient temperature-20 °C ... 80 °C
-
Impact energy in the end positions0.15 J
-
Cushioning length12 mm
-
Theoretical force at 6 bar, retracting103.7 N
-
Theoretical force at 6 bar, advancing120.6 N
