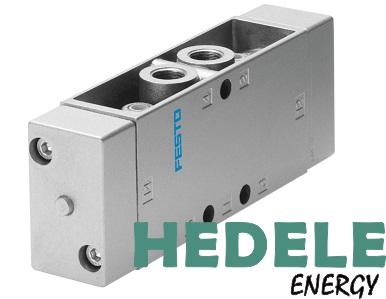

JH-5-1/4-EX 536036
delivery time:4weeks
-
Valve function5/2, bistable
-
Actuation typePneumatic
-
Width30.5 mm
-
Standard nominal flow rate1100 l/min
-
Pneumatic working portG1/4
-
Operating pressure0 MPa ... 0.8 MPa
-
Operating pressure0 bar ... 8 bar
-
Structural designPlate seat
-
Degree of protectionIP65
-
CE marking (see declaration of conformity)as per EU explosion protection directive (ATEX)
-
UKCA marking (see declaration of conformity)acc. to UK EX instructions
-
ATEX category gasII 2G
-
ATEX category for dustII 2D
-
Type of ignition protection for gasEx h IIC T4 Gb
-
Type of (ignition) protection for dustEx h IIIC T130°C Db
-
Explosive ambient temperature-10°C <= Ta <= +60°C
-
Explosion protection certification outside the EUEPL Db (GB)
EPL Gb (GB)
-
Nominal width7 mm
-
Width dimension32 mm
-
Exhaust air functionWith flow control option
-
Sealing principleSoft
-
Mounting positionAny
-
Type of controlDirect
-
Pilot air supply portExternal
-
Flow directionNon-reversible
-
Symbol00995757
-
LapUnderlap
-
Pilot pressure MPa0.12 MPa ... 1 MPa
-
Pilot pressure1.2 bar ... 10 bar
-
Max. switching frequency12 Hz
-
Changeover time7 ms
-
Explosion prevention and protectionZone 1 (ATEX)
Zone 1 (UKEX)
Zone 2 (ATEX)
Zone 21 (ATEX)
Zone 21 (UKEX)
Zone 22 (ATEX)
-
Operating mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
-
Information on operating and pilot mediaOperation with oil lubrication possible (required for further use)
-
Corrosion resistance class (CRC)1 - Low corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Storage temperature-20 °C ... 60 °C
-
Temperature of medium-10 °C ... 60 °C
-
Pilot mediumCompressed air as per ISO 8573-1:2010 [7:4:4]
-
Ambient temperature-10 °C ... 60 °C
