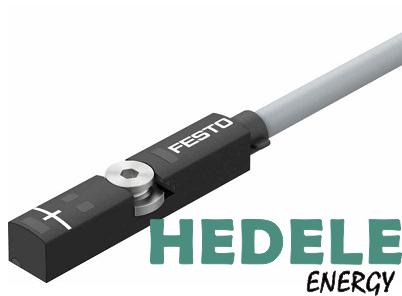

574336 SMT-8M-A-PS-24V-E-5
delivery time:1-2weeks
-
Designfor T-slot
-
Based on normEN 60947-5-2
-
Symbol00991152
-
CertificationRCM compliance mark
c UL us - Listed (OL)
-
CE marking (see declaration of conformity)As per EU EMC directive
As per EU RoHS directive
-
UKCA marking (see declaration of conformity)To UK instructions for EMC
To UK RoHS instructions
-
KC charactersKC EMC
-
Certificate issuing authorityUL E232949
-
Special featuresOil-resistant
-
Note on materialsRoHS-compliant
Halogen-free
-
Application noteSupport / actuator-sensor overview "The right sensor for the actuator"
-
Measured variablePosition
-
Measuring principleMagneto-resistive
-
Ambient temperature-40 °C ... 85 °C
-
Repetition accuracy0.2 mm
-
Switching outputPNP
-
Switching element functionN/O contact
-
On time1.3 ms
-
Switch-off time1.4 ms
-
Max. switching frequency180 Hz
-
Max. output current100 mA
-
Max. output current in mounting kits100 mA
-
Max. switching capacity DC2.8 W
-
Max. switching capacity DC in mounting kits2.8 W
-
Voltage drop1.5 V
-
Short-circuit protectionyes
-
Overload protectionAvailable
-
Rated operating voltage DC24 V
-
DC operating voltage range5 V ... 30 V
-
Reverse polarity protectionfor all electrical connections
-
Electrical connection 1, connection typeCable
-
Electrical connection 1, connection technologyOpen end
-
Electrical connection 1, number of pins/wires3
-
Connection outlet orientationLongitudinal
-
Connector cable test conditionsFlexural strength: as per Festo standard
Test conditions on request
Energy chain > 5 million cycles, bending radius 28 mm
Torsional resistance: > 300 000 cycles, ±270°/0.1 m
-
Cable length5 m
-
Cable characteristicSuitability for energy chains/robot applications
-
Color cable sheathGray
-
Material of cable sheathTPE-U(PUR)
-
Type of mountingScrewed tightly
Can be inserted in slot from above
-
Max. tightening torque0.6 Nm
-
Mounting positionAny
