ZLL

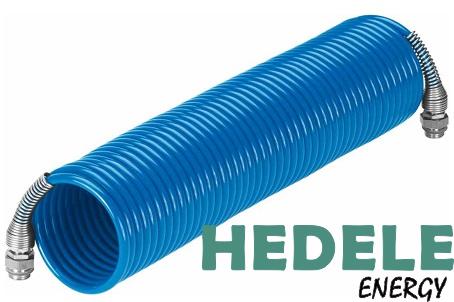

19796 PPS-6-7,5-1/4-BL
delivery time: 4-6weeks
-
Working length7.5 m
-
Outside diameter7.8 mm
-
Block length0.43 m
-
Inside diameter6.2 mm
-
Winding diameter75 mm
-
Number of windings43
-
Temperature-dependent operating pressure-0.95 bar ... 17.2 bar
-
Operating mediumCompressed air as per ISO 8573-1:2010 [7:-:-]
-
Corrosion resistance class (CRC)1 - Low corrosion stress
-
LABS (PWIS) conformityVDMA24364-B2-L
-
Ambient temperature-30 °C ... 80 °C
-
Nominal tightening torque11 Nm
-
Tolerance for nominal tightening torque± 20%
