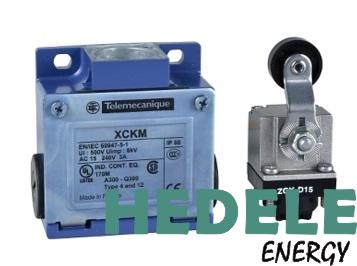

XCKM115
delivery time:in stock
range of product
Telemecanique Limit switches XC Standard
series name
Standard format
product or component type
Limit switch
device short name
XCKM
body type
Fixed
head type
Rotary head
material
Metal
body material
Zamak
fixing mode
By the body
movement of operating head
Rotary
type of operator
Spring return roller lever thermoplastic
type of approach
Lateral approach, 2 directions
cable entry
3 entries tapped for Pg 11 cable gland
number of poles
2
contacts type and composition
1 NC + 1 NO
contact operation
Snap action
switch actuation
By 30° cam
electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
contacts insulation form
Zb
number of steps
1
positive opening
With
positive opening minimum torque
0.25 N.m
minimum torque for tripping
0.1 N.m
minimum actuation speed
0.01 m/min
maximum actuation speed
1.5 m/s
contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to EN/IEC 60947-5-1 appendix A
Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
10 A AC
[Ui] rated insulation voltage
300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14
maximum resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60664
6 kV conforming to IEC 60947-1
short-circuit protection
10 A cartridge fuse, type gG
electrical durability
5000000 cycles, DC-13, inductive load type, 120 V, 4 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 24 V, 7 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, inductive load type, 48 V, 10 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
mechanical durability
15000000 cycles
