ZLL

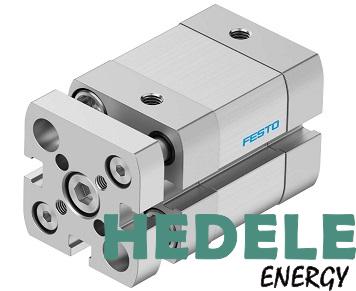

ADNGF-20-10-P-A 554221
delivery time:3weeks
-
Stroke10 mm
-
Piston diameter20 mm
-
Based on standardISO 21287
-
CushioningElastic cushioning rings/plates at both ends
-
Mounting positionoptional
-
DesignPiston
Piston rod
Profile barrel
-
Position detectionVia proximity switch
-
Protection against torque/guideGuide rod with yoke
-
Operating pressure0.15 MPa ... 1 MPa
-
Operating pressure1.5 bar ... 10 bar
-
Mode of operationDouble-acting
-
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
-
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
-
Corrosion resistance class CRC2 - Moderate corrosion stress
-
LABS (PWIS) conformityVDMA24364-B1/B2-L
-
Ambient temperature-20 °C ... 80 °C
-
Impact energy in end positions0.2 J
-
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke141 N
-
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke188 N
-
Moving mass for 0 mm stroke60 g
-
Additional moving mass per 10 mm stroke11 g
-
Basic weight for 0 mm stroke161 g
-
Additional weight per 10 mm stroke26 g
-
Pneumatic connectionM5
-
Note on materialsRoHS-compliant
-
Material coverAluminium
Anodised
-
Material sealsTPE-U(PUR)
-
Material piston rodHigh-alloy steel
-
Material cylinder barrelWrought aluminium alloy
Smooth anodised
